I have been working with Capella for a few weeks and would appreciate your guidance on the physical architecture.
Background:
I began by defining the system’s components and functions, and then proceeded to explain the logical components and their corresponding functions.
So, I started with functions first - I created the logical function diagram first, then allocated those functions to their corresponding logical components.
Then, I deployed this to the physical nodes. At this point, I understand the actual interface between the sensor and the ECU. We have SPI and SENT 2 interface.
Questions:
- As I can not allocate component exchange to more than one physical exchange, what is the best way to go ahead?

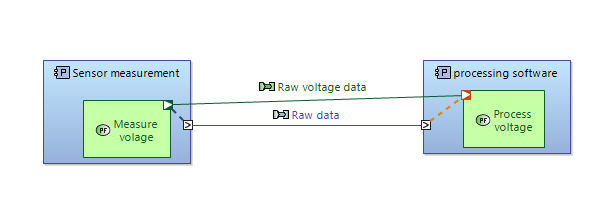

- Should I update the function into two and create two function exchanges, then 2 component exchanges, and then allocate to each physical link?

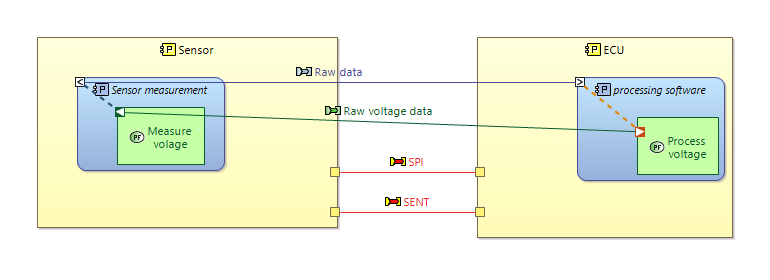

- I can show only one link between the Sensor and the ECU, as in all examples
However, I don’t think this is the right way to represent it - where I will show that it has both SENT and SPI?
