Diagram Corruption/Mapping Issue in Capella 7.0.1

Capella
1

Hi everyone,

I am experiencing strange behavior in Capella regarding my diagrams. Specifically, Activities are being replaced by Instance Roles causing all interactions to disappear. Additionally, the layout of my Operational Capability Blank (OCB) diagrams is becoming corrupted and all relationships are being lost.

Fortunately, I was able to restore the elements using Ctrl + Z

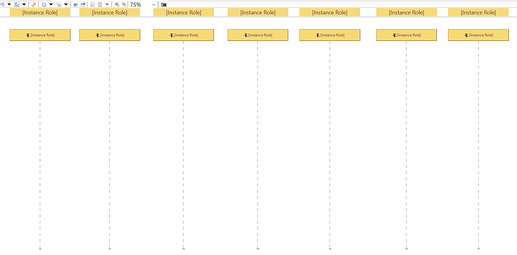

image1113×551 31 KB

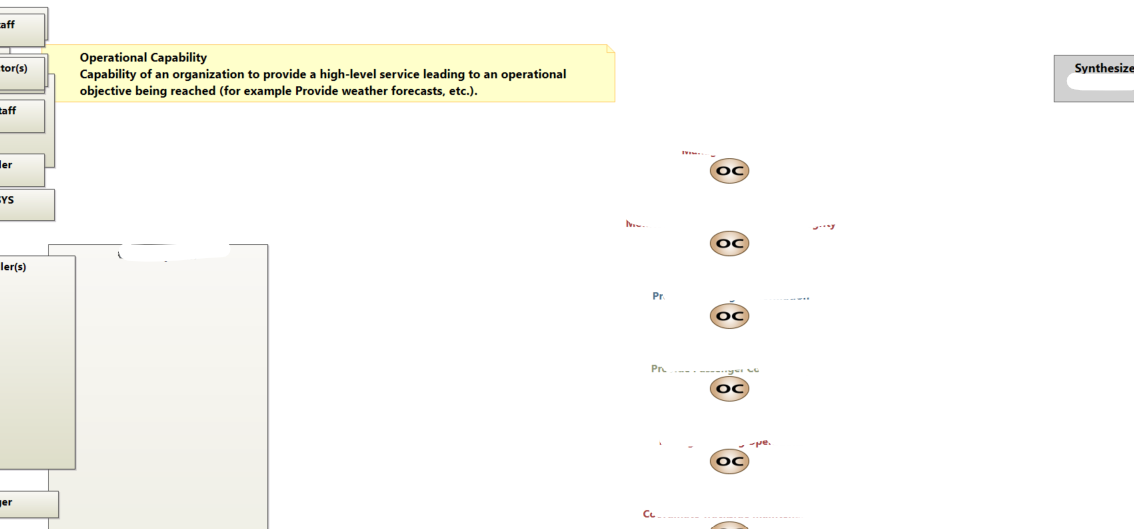

image1141×529 48.5 KB

Environment Details:

  • Version: Capella 7.0.1 (integrated with Git)

  • OS: Windows 11 Professional

Has anyone encountered this before or is there a known fix for this issue ?
Thanks for your help !

2

The good news is that I got the model functional after reverting to an old commit (using git reset --hard <commit_hash> and git push origin <branch_name> --force). However, as a consequence all modifications made after that commit were lost :frowning:

3

Can you make a video of what you are doing when this happens?
