Change the direction of a component exchange

Capella
1

Hello,

Some component exchange are not well oriented in my model. Il would like to change the direction without remove and re-create the component exchange.

I can change the arrow direction using the change direction of the component port :

Capture d’écran 2026-03-13 170521

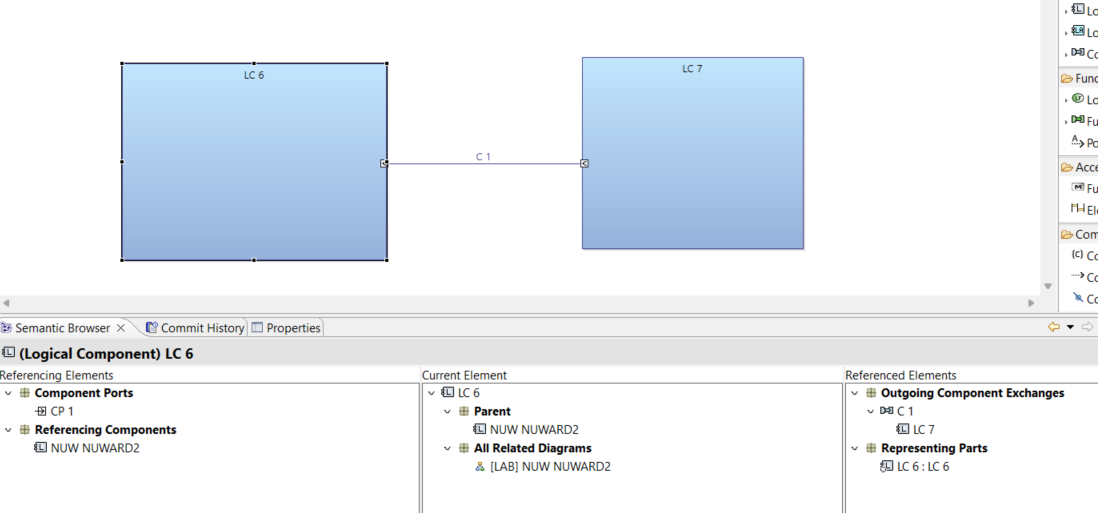

but it seems to be just visual on a diagram and doesn’t change the direction of the component exchange:

image1098×513 61.4 KB

Then the model becomes stupid…

Is there a way to change the direction of a component exchange (“outgoing CE” becoming “Incoming CE” in the snapshot above)?

thanks,

d

2

You can use a small Python4Capella script, like this

#-------------------------------------------------------------------------------
# (c) Pier Giorgio Esposito, 2024
# name                    : Reverse Component Exchange
# script-type             : Python
# description             : Swap Source and Target of a Compoment Exchange
# popup                   : enableFor(org.polarsys.capella.core.data.fa.ComponentExchange)
#
#-------------------------------------------------------------------------------
# include needed for the Capella modeller API
include('workspace://Python4Capella/simplified_api/capella.py')
if False:
    from simplified_api.capella import *

include('workspace://Python4Capella/java_api/Java_API.py')
if False:
    from java_api.Java_API import *

# include needed for the Requirement API
include('workspace://Python4Capella/simplified_api/requirement.py')
if False:
    from simplified_api.requirement import *

import logging

# configure logging format
logFormat = '%(asctime)-15s - %(processName)s - %(message)s'
logging.basicConfig(format=logFormat, level=logging.INFO)
logging.getLogger('py4j').setLevel(logging.ERROR)

# Retrieve the Element from the current selection
selElem = CapellaPlatform.getFirstSelectedElement()
c = ComponentExchange(selElem)

modelPath = CapellaPlatform.getModelPath(c)
aird_path = '/' + modelPath

model = CapellaModel()
model.open(aird_path)

# gets the SystemEngineering and print its name
se = model.get_system_engineering()
logging.info('Model name: %s', se.get_name())

# preparing excel file export
project_name = aird_path[0:(aird_path.index("/", 1) + 1)]
project = CapellaPlatform.getProject(project_name)

# start transaction to make modifications in the model
model.start_transaction()
try:
    logging.info(c.get_name())
    sp = c.get_source_port()
    logging.info(sp.get_name())

    spj = sp.get_java_object()
    logging.info(spj)

    tp = c.get_target_port()
    logging.info(tp.get_name())

    tpj = tp.get_java_object()
    logging.info(tpj)

    cj = c.get_java_object()
    logging.info(cj)

    cj.setSource(tpj)
    cj.setTarget(spj)

except:
    # if something went wrong we rollback the transaction
    model.rollback_transaction()
    raise
else:
    # if everything is ok we commit the transaction
    model.commit_transaction()

This script does not change the direction of the port, but it is easy to implement it.
